Function and Use of Product:

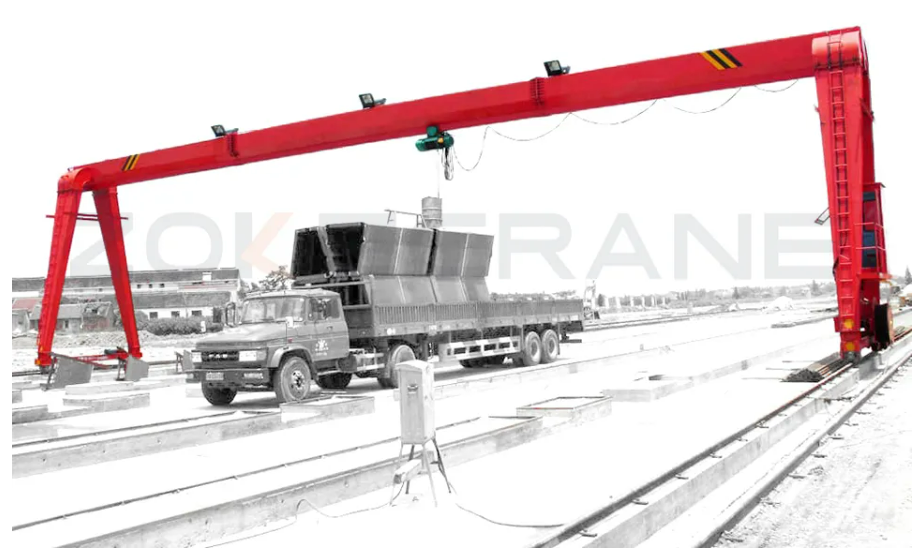

Electric single girder gantry crane is a common lifting equipment with tonnage of 0.5~20t. It is widely used in factory, mine, port, warehouse, multi-wind areas and other material handling places to improve the efficiency of labor and improve the necessary machinery working conditions. This kind of crane is composed of main beam, support legs, crane traveling system, electric hoist and control panel. The frame adopts a box-type welding mechanism. The Crane traveling mechanism adopts a separate driver. All mechanisms are operated in the driver cabin. Power is supplied by cable or slide wire.
According to detailed condition, it can be low headroom gantry crane to save more room for work height, European crane designed based on FEM standard, truss type crane to relieve the wind pressure and save cost, semi gantry crane to be used where there are single side columns and runway beams.
Application Field of the Product:
- Manufacturing
- Transport
- Education
Product Specifications and Features:
- Capacity: 5-20 ton
- Span: 14-35m
- Lifting height:6-9m
- Hoisting speed: 6-20 m/min
- Traversing speed: 11-30 m/min
- Work Duty Group: M3-M5
- Crane traveling speed: Electric
- Voltage: AC 3Ph/220V/50Hz
- Hoist: electric chain hois
