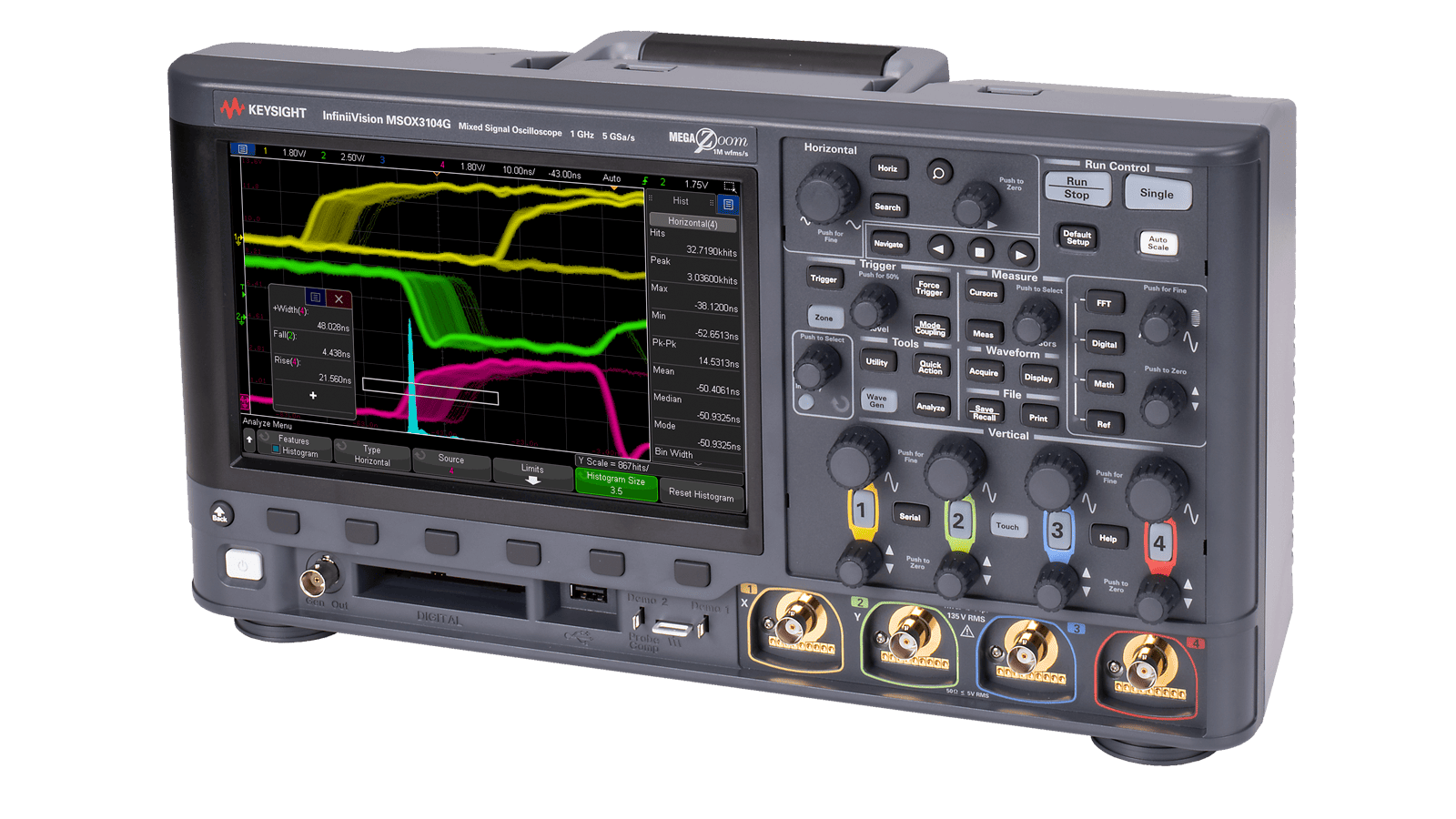

InfiniiVision 3000G X-Series – Keysight
Price: Contact
Available
Right out of the box, the Keysight 3000G X-Series oscilloscopes come with everything you need to get started in general-purpose electronic design. The included software, probes, other advanced features such as histograms and zone touch triggering, and technical support are ideal for R&D debugging, low-speed serial design and testing, power integrity testing, and equipping the labs of educators who teach engineers in training.
- Description
- References
- Remarks
Highlights of Keysight InfiniiVision 3000G X-Series
The Keysight 3000G X-Series oscilloscope enables you to make reliable measurements you can count on quickly and easily. The 3000G X-Series brings some of our high-end technology to an entry-level oscilloscope, with 20 models ranging from 100 MHz to 1 GHz of bandwidth and an intuitive 8.5-inch capacitive touch user interface. At an industry-leading waveform update rate of 1,000,000 waveforms per second, you can capture elusive glitches and anomalies that are not possible on other oscilloscopes. Pair automated oscilloscope software and waveform and measurement histograms with zone touch triggering to turn the most advanced measurements into one easy step — simply draw a box with your finger on the screen.
Right out of the box, the 3000G X-Series oscilloscopes come with everything you need to get started in general-purpose electronic design. The included software, probes, other advanced features such as histograms and zone touch triggering, and technical support are ideal for R&D debugging, low-speed serial design and testing, power integrity testing, and equipping the labs of educators who teach engineers in training.
Key Specifications of Keysight InfiniiVision 3000G X-Series
| Analog channels | 2 and 4 |
| Bandwidth | 100, 200, 350, 500 MHz, 1 GHz |
| Digital channels | 16 (MSO models or upgrade) |
| Max Sample Rate / All Channels | 5 GSa/s |
| Maximum memory depth |
4 Mpts |
| Waveform update rate | > 1,000,000 wfms/sec |
| Vertical system analog channels | |
| Hardware bandwidth limits | 20 MHz |
| Input coupling | AC, DC |
| Input impedance | 1 MΩ, 50 Ω |
| Input sensitivity range | 1 mV/div to 5 V/div |
| Vertical resolution | 8 bits |
| Maximum input voltage, 1 MΩ | 125 Vrms; 190 Vpk |
| Channel-to-channel isolation | > 100:1 |
| Horizontal system analog channels | |
| Time base range | 500 ps/div to 50 s/div |
| Time base accuracy | ± 1.6 ppm |
| Trigger | |
| Trigger modes | Normal, Auto, Single, Force |
| Trigger types | Zone, Edge, Pulse width , Pattern, Video, Rise/fall time … |
| Generals | |
| Display type | 8.5-inch capacitive touch display |
| Power source | 100 to 240 V, 50/60 Hz ± 10% |
| Operating Temperature | 5 to 50 °C |
| Intergrated Function | Arbitrary waveform generator Mask/limit testing Histograms Serial protocol analysis Power analysis |
MITAS Hanoi Technology JSC is now the Keysight Authorized Distributor in Vietnam. We are also the leading service provider for integrated system in Security, Military, Education, Manufacturing, etc.
Contact us to have the best solutions with Keysight InfiniiVision 3000G X-Series Oscilloscopes as well as other high quality products and services.
