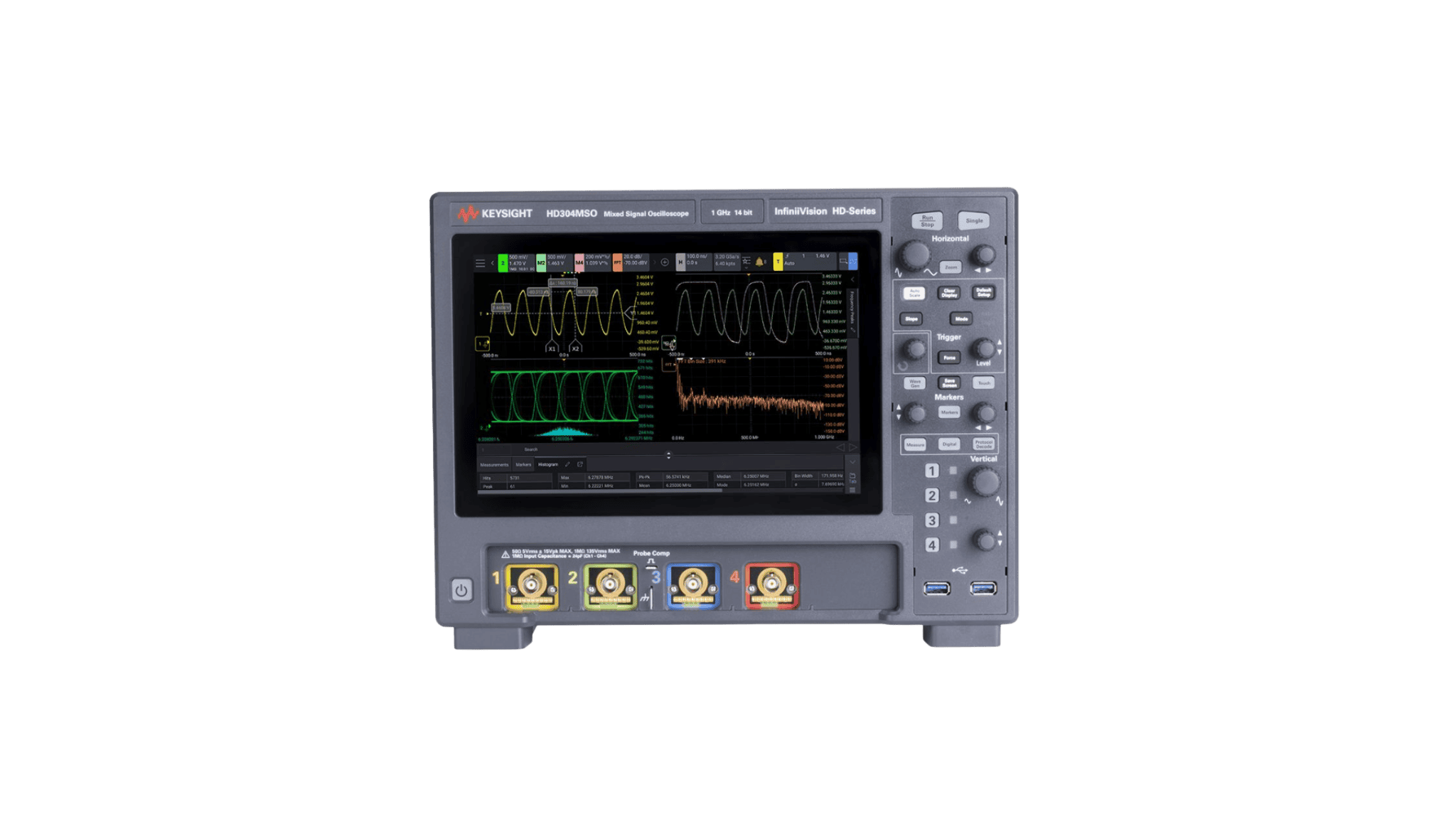

Debug designs with the Keysight InfiniiVision HD3 Series handheld oscilloscope, equipped with a custom ASIC and 14-bit ADC, delivering up to 4× higher vertical resolution and 2× lower noise compared to competing solutions.
Engineered with a newly developed application-specific integrated circuit (ASIC) and deep memory architecture, the Keysight InfiniiVision HD3 Series enables engineers to rapidly uncover and troubleshoot signal integrity issues across a broad range of applications.
Keysight InfiniiVision HD3 Series Oscilloscope – Technical Specifications & Features
- Analog Channels: 2 or 4
- Bandwidth: 200 MHz to 1 GHz
- Digital Channels (MSO Option): 16
- Maximum Real-Time Sample Rate: 3.2 GSa/s (all channels)
- Maximum Memory Depth: 100 Mpts
- Waveform Update Rate: up to 1,300,000 wfms/s
Vertical System
- Hardware Bandwidth Limit: 5, 10, 20, 50, 100, 200, 350 MHz
- Input Coupling: AC, DC
- Input Impedance: 1 MΩ, 50 Ω
- Vertical Sensitivity: 1 mV/div to 10 V/div
- Vertical Resolution: 14 bits (enhanced up to 16 bits)
- Maximum Input Voltage: 135 Vrms / 190 Vpk
- Channel Isolation: ≥ 100:1 (DC to 1 GHz), ≥ 30:1 (> 1 GHz)
Horizontal System
- Timebase Range: 500 ps/div to 50 s/div
- Timebase Accuracy: ± 1.6 ppm
Trigger System
- Trigger Modes: Normal, Auto, Single, Force
- Trigger Types: Zone, Edge, Pulse Width, Pattern, Video, Rise/Fall Time, etc.
General Characteristics
- Display: 10.1-inch capacitive touchscreen
- Power Requirements: 100–120 V, 50/60/400 Hz; 100–240 V, 50/60 Hz ±10%
- Operating Temperature: 0 °C to +50 °C
Integrated Applications and Features
- Built-in Waveform Generator (optional)
- Mask/Limit Testing
- Frequency Response Analysis (FRA)
- Serial Protocol Analysis
- Power Integrity and Power Supply Analysis
