Ultraportable Spectrum Analyzer – Anritsu MS2760A

linhnguyen — Wed, 19 Apr 2023 04:22:51 +0000

Product Specifications and Features:

Frequency Range: 9 kHz to 32/44/50/70/90/110/145/170 GHz
Tuning Resolution: 1 Hz
Displayed Average Noise Level: –140 dBm/Hz ( > 670 MHz to 4 GHz)
Resolution Bandwidth (RBW): 1 Hz to 3 MHz in 1 – 3 sequence
Video Bandwidth ( VBW): 1 Hz to 3 MHz in 1 – 3 sequence
Third Order Intermodulation Distotion :+35 dBm
SSB Phase Noise: –116 dBc/Hz (100kHz offset)
Maximum Input Level: +30 dBm
Power: via USB
Operating Temperature: 0 °C to 50°C
Size: 155 mm x 84 mm x 27 mm (6.1 in x 3.3 in x 1.1 in)
Weight 255 g (9.0 oz)

Spectrum Master Handheld Spectrum Analyzer – Anritsu MS2720T

linhnguyen — Wed, 19 Apr 2023 04:16:36 +0000

Product Specifications and Features:

Frequency Range: 9 kHz to 9/13/20 GHz
Tuning Resolution: 1 Hz
Displayed Average Noise Level: –164 dBm/Hz (10 MHz to 3 GHz)
Resolution Bandwidth (RBW): 1 Hz to 10 MHz in 1 – 3 sequence
Video Bandwidth ( VBW): 1 Hz to 10 MHz in 1 – 3 sequence
Third Order Intermodulation Distotion :+20 dBm
SSB Phase Noise: –133 dBc/Hz (10 MHz offset)
Maximum Input Level: +30 dBm
Battery: 3 Hour
Display: 8.4 inches touch
Power: 100 V to 240 V
Operating Temperature: –10 °C to 55°C

Spectrum Master Handheld Spectrum Analyzer – Anritsu MS2711E

linhnguyen — Wed, 19 Apr 2023 04:12:56 +0000

Product Specifications and Features:

Frequency Range: 9 kHz to 3 GHz
Tuning Resolution: 1 Hz
Displayed Average Noise Level: –162 dBm/Hz (10 MHz to 2.4 GHz)
Resolution Bandwidth (RBW): 1 Hz to 3 MHz in 1 – 3 sequence
Video Bandwidth ( VBW): 1 Hz to 3 MHz in 1 – 3 sequence
Third Order Intermodulation Distotion :+28 dBm
SSB Phase Noise: –111 dBc/Hz (1 MHz offset)
Maximum Input Level: +30 dBm
Battery: 3 Hour
Display: 8.4 inches touch
Power: 100 V to 240 V
Operating Temperature: –10 °C to 55°C

Spectrum Master Handheld Spectrum Analyzer – Anritsu MS2713E

linhnguyen — Wed, 19 Apr 2023 04:07:23 +0000

Product Specifications and Features:

Frequency Range: 9 kHz to 6 GHz
Tuning Resolution: 1 Hz
Displayed Average Noise Level: –162 dBm/Hz (10 MHz to 2.4 GHz)
Resolution Bandwidth (RBW): 1 Hz to 3 MHz in 1 – 3 sequence
Video Bandwidth ( VBW): 1 Hz to 3 MHz in 1 – 3 sequence
Third Order Intermodulation Distotion :+33 dBm
SSB Phase Noise: –121 dBc/Hz (1 MHz offset)
Maximum Input Level: +30 dBm
Battery: 3 Hour
Display: 8.4 inches touch
Power: 100 V to 240 V
Operating Temperature: –10 °C to 55°C

– Functional Highlights:

LTE/LTE-A FDD/TDD; MIMO (2×2, 4×4)
Narrow-Band Internet of Things (NB-IoT)
CDMA, EV-DO
GSM/EDGE
W-CDMA/HSPA+
TD-SCDMA/HSPA+
Fixed, Mobile WiMAX
EMF Test
ISDB-T, ISDB-T SFN
PIM Alert Application
PIM Hunting
DVB-T/H, DVB-T/H SFN
Gated Sweep
Tracking Generator
Internal Preamplifier standard
Internal Bias-Tee
Internal Power Meter
High Accuracy Power Meter

LMR Master Land Mobile Radio Modulation Analyzer – Anritsu S412E

linhnguyen — Wed, 19 Apr 2023 04:00:49 +0000

Product Specifications and Features:

– Land Mobile Radio Signal Analyzer Highlights:
• Analyzes Narrowband FM analog systems
• Analyzes P25 (TIA-102.CAAA-C), P25 Phase 2 (TIA-102.CCAA), DMR (MOTOTRBO)a, NXDN, dPMR, PTC-ITCR, PTC-ACSES, and TETRA digital systems
• 100 kHz to 1.6 GHz frequency coverage (Optional extension to 6 GHz)
• Internal signal generator: 0.1 dB resolution, 0 dBm to –130 dBm (spec to –120 dBm)
• 2.0 dB signal generator accuracy (typical)
• P25/P25p2, NXDN, and ETSI DMR BER test patterns including 1011, 1031, and V.52/O.153
• Duplex test: Simultaneous analysis and generation of analog or digital LMR signals
• Independent control of both receive/transmit frequencies and test patterns
• TETRA Base Station Receiver Sensitivity Measurements

– Spectrum Analyzer Highlights:
• Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Coverage Mapping
• Interference Analyzer: Spectrogram, Signal Strength, RSSI, Mapping
• 9 kHz to 1.6 GHz frequency coverage (Optional extension to 6 GHz)
• Dynamic Range: > 95 dB in 10 Hz RBW
• DANL: –152 dBm in 10 Hz RBW
• Phase Noise: –100 dBc/Hz max @ 10 kHz offset at 1 GHz
• Frequency Accuracy: 120 ppb standard (25 °C ± 25 °C); < 50 ppb after 3 minutes with GPS lock
• PIM Huntin

– VNA Analyzer Highlights:
• 1-path, 2-port Vector Network Analyzer (VNA) w/ quad trace display
• 500 kHz to 1.6 GHz frequency coverage (Optional extension to 6 GHz)
• Intuitive Graphical User Interface (GUI) with convenient touchscreen
• VNA-quality error correction for directivity and source match
• Outstanding calibration stability, up to 16 hours
• Arbitrary data points up to 4001
• IF Bandwidth selections of 10 Hz to 100 kHz
• 100 dB transmission dynamic range
• 850 us/data point sweep speed

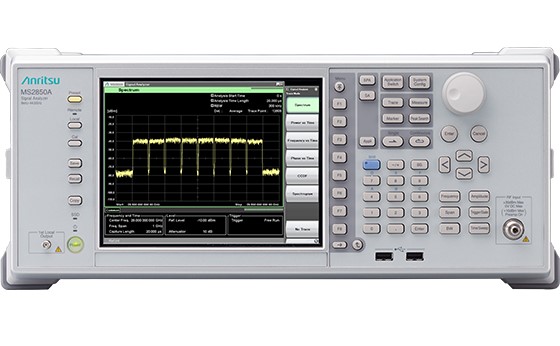

Signal Analyzer – Anritsu MS2850A

linhnguyen — Wed, 19 Apr 2023 03:47:29 +0000

Product Specifications and Features:

Frequency Range: 9 kHz to 32/44.5 GHz
Frequency Resolution: 1 Hz
Displayed Average Noise Level: –166 dBm/Hz (30 MHz ≤ Frequency < 1 GHz) With MS2850A-068 and Preamp: On
Resolution Bandwidth (RBW): 1 Hz to 10 MHz
Analysis Bandwidth : up to 1 Ghz (Option)
Sweep (trace) Point: 30001
Third Order Intermodulation Distotion :+16 dBm
SSB Phase Noise: –148 dBc/Hz (10 MHz offset) With MS2840A-066
Maximum Input Level: +30 dBm
Display: 8.4 inches
Power: 100 V to 240 V
Operating Temperature: –10 °C to 55°C

Signal Analyzer – Anritsu MS2840A

linhnguyen — Wed, 19 Apr 2023 03:33:09 +0000

Product Specifications and Features:

Frequency Range: 9 kHz to 3.6/6/26.5/44.5 GHz
Frequency Resolution: 1 Hz
Displayed Average Noise Level: –166 dBm/Hz (30 MHz ≤ Frequency < 1 GHz
Resolution Bandwidth (RBW): 1 Hz to 31.25 MHz
Analysis Bandwidth : 1 kHz to 25 MHz (1-2.5-5 sequence), 31.25 MHz, 50 MHz, 62.5 MHz, 100 MHz, 125 MHz (with MS2830A-078)
Sweep (trace) Point: 30001
Third Order Intermodulation Distotion :+16 dBm
SSB Phase Noise: –148 dBc/Hz (1 MHz offset) With MS2840A-066
Maximum Input Level: +30 dBm
Display: 8.4 inches
Power: 100 V to 240 V
Operating Temperature: +5 °C to +45 °C

Signal Analyzer – Anritsu MS2690A

linhnguyen — Wed, 19 Apr 2023 03:23:51 +0000

Product Specifications and Features:

Frequency Range: 50 Hz to 6/13.5/26.5 GHz
Frequency Resolution: 2 Hz
Displayed Average Noise Level: –163 dBm/Hz (30 MHz ≤ f < 1 GHz)
Resolution Bandwidth (RBW): 1 Hz to 3 MHz (1-3 sequence), 500 Hz, 50 kHz, 2 MHz, 5 MHz, 10 MHz, 20 MHz, 31.25 MHz (Option)
Video Bandwidth: 1 Hz to 10 MHz
Analysis Bandwidth : 1 kHz to 25 MHz (1-2.5-5 sequence), 31.25 MHz, 50 MHz, 62.5 MHz, 100 MHz, 125 MHz with MS269xA-077/078
Sweep (trace) Point: 30001
Third Order Intermodulation Distotion :+22 dBm
SSB Phase Noise: –137 dBc/Hz (1 MHz offset)
Maximum Input Level: +30 dBm
Display: 8.4 inches
Power: 100 V to 240 V
Operating Temperature: +5 °C to +45 °C

Spectrum Analyzer/Signal Analyzer – Anritsu MS2830A

linhnguyen — Wed, 19 Apr 2023 03:20:59 +0000

Product Specifications and Features:

Frequency Range: 9 kHz to 3.6/6/13.5/26.5/43 GHz
Frequency Resolution: 1 Hz
Displayed Average Noise Level: –163 dBm/Hz (30 MHz ≤ f < 1 GHz)
Resolution Bandwidth (RBW): 1 Hz to 3 MHz (1-3 sequence), 500 Hz, 50 kHz, 2 MHz, 5 MHz, 10
MHz, 20 MHz, 31.25 MHz (Option)
Analysis Bandwidth : 1 kHz to 25 MHz (1-2.5-5 sequence), 31.25 MHz, 50 MHz, 62.5 MHz, 100 MHz, 125 MHz (with MS2830A-078)
Sweep (trace) Point: 30001
Third Order Intermodulation Distotion :+15 dBm
SSB Phase Noise: –133 dBc/Hz (1 MHz offset)
Maximum Input Level: +30 dBm
Display: 8.4 inches
Power: 100 V to 240 V
Operating Temperature: +5 °C to +45 °C
