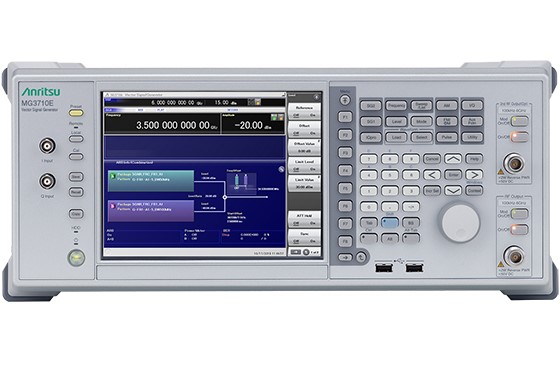

Signal Generator – Anritsu MG3710E

Product Specifications and Features:

• “Frequency Range: 100 kHz – 2.7/4/6 GHz Additional 2nd channels”
• Aging: ±1 × 10–7 /year
• Frequency Resolution: 0.01 Hz
• Output power:–110 – +17 dBm
• Level accuracy:±0.5 dB
• Reverse power: ±50 VDC; 2W
• VSWR: ≤1.65
• Sweep: Frequency, Level, Frequency + Level
• Harmonics: <–30 dBc
• Subharmonics: <–62 dBc
• Wideband noise: N/A
• SSB phase noise: <–131 dBc/Hz (@f = 1 GHz; offset: 10 kHz)
• “Modulation: – AM, FM, PM, Pulse – I/Q”
• Internal modulation generator: 0.1 Hz to 1 MHz
• Bandwidth (RF): 160 MHz
• Waveform length: 64 Msamples/256 Msamples/1024 Msamples
• Reference input: BNC female/ 10 MHz,100 MHz/ 10 dBm – 14 dBm
• Reference output: BNC female/ 10 MHz, 100 MHz/ 10 dBm
• Interface: USB; LAN; GPIB
• Display: 8.4-inch
• Power: 100 V(ac) to 120 V(ac), 200 V(ac) to 240 V(ac)
• Operating Temperature: +5°C to +45°C
• Integrated Function: BER Test Function, AWGN, DFS Radar Pattern, 3G/4G/5G NR waveform
